AXLE
Choice of:
- 3,500lbs Dexter E-Z Lube Axles with 4″ Drop Leaf Spring*
- ST 205/75 R15 6 ply Tires
- 5,200lbs Dexter E-Z Lube Axles with 4″ Drop Leaf Spring*
- ST 225/75 R15 8 ply Tires
- 7,000lbs Dexter Torsion Axles (drop spring available on request) *
- ST 235/80 R16 10ply Tires
*rolling inventory change
FRAME
- 4″ Steel Tube Main Frame (Double Tube) & 16″ on center cross-members
- HD Drop Leg Jack
- 2 5/16″ Coupler
DIMENSIONS

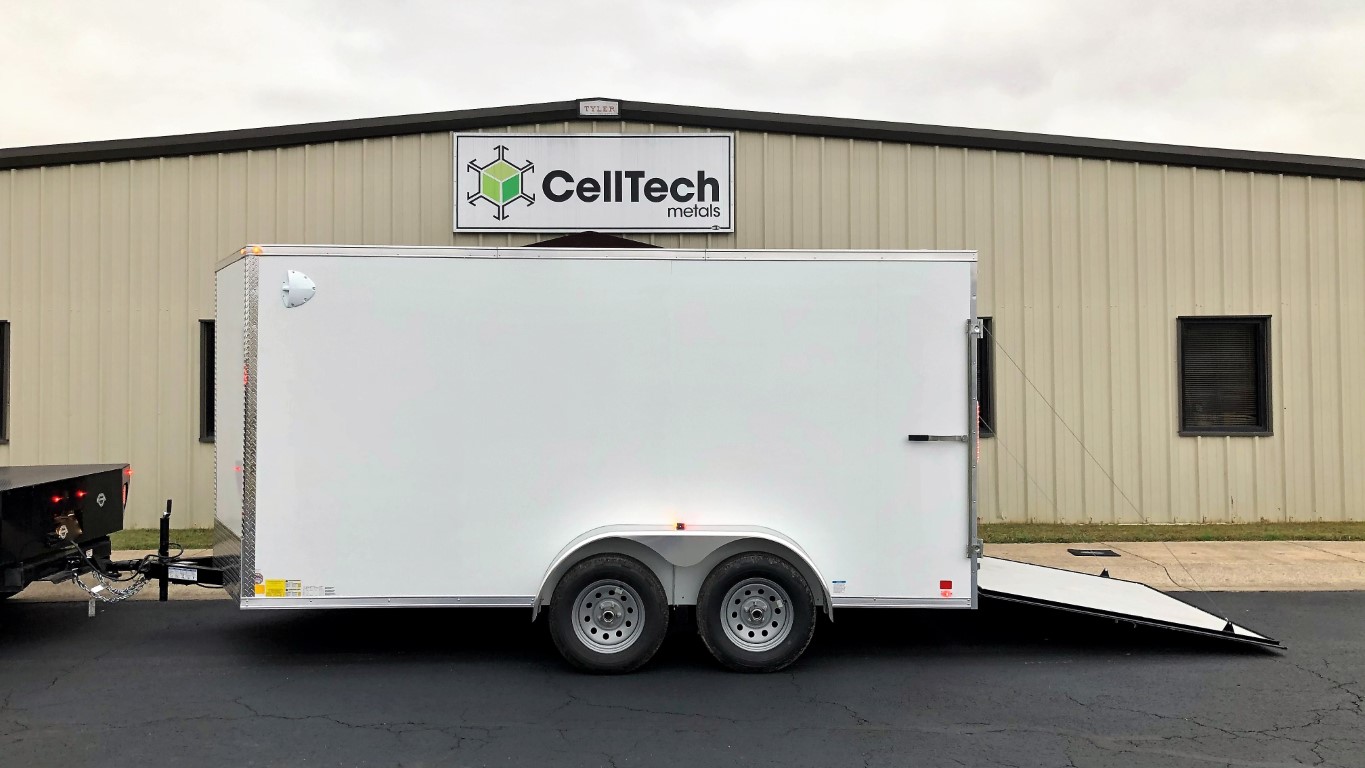

- Interior Box Length 14’
- Interior Overall Length 15’ 6”
- Interior Width 6‘ 9“
- Interior Height 7‘ 2“
- Ramp Width 6‘ 1“
- Ramp Height 6‘ 10“
- Overall Length 19‘
- Overall Height (leveled) 8‘ 9“
- Weight 2,325lbs
ACCESSORIES
- Electric Brakes (Both Axles)
- Flow Through Vent System

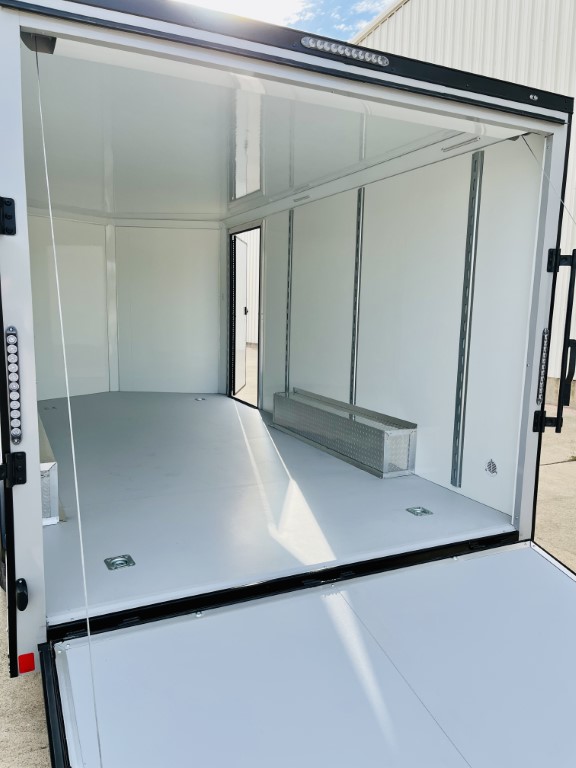

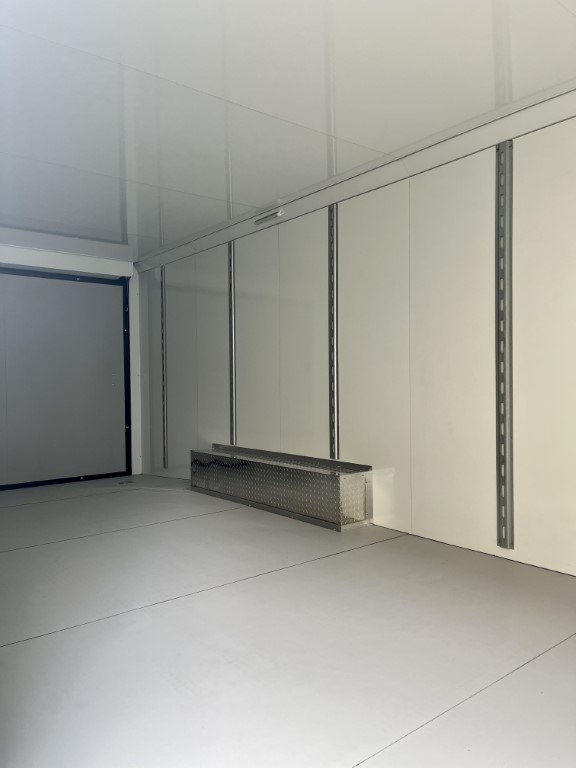

- Wall Mounted Vertical E Tracks (8pcs)
- Roof Mounted Vertical E tracks (2pcs)
- All LED Lights (Interior & Exterior)
- 7 Way Bergman Plug
- LED Brake Away Kit

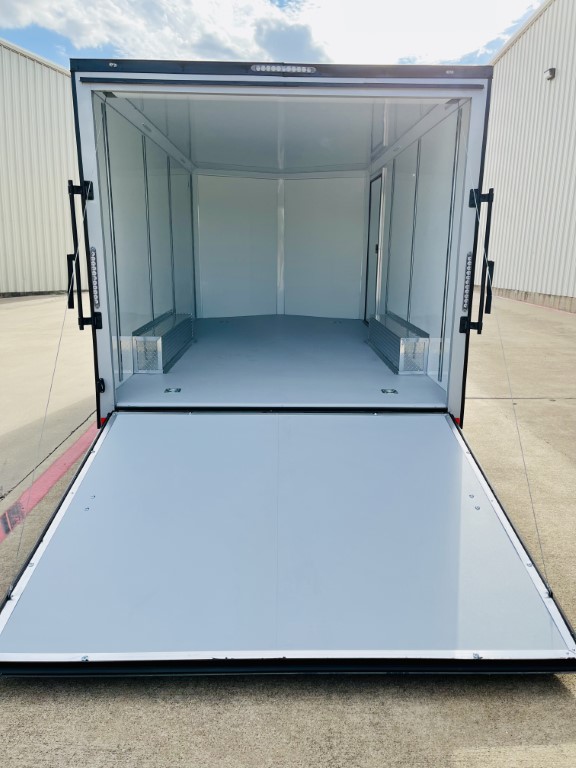

- Heavy Duty Ramp Door with Ramp Door Handle & Bar Locks

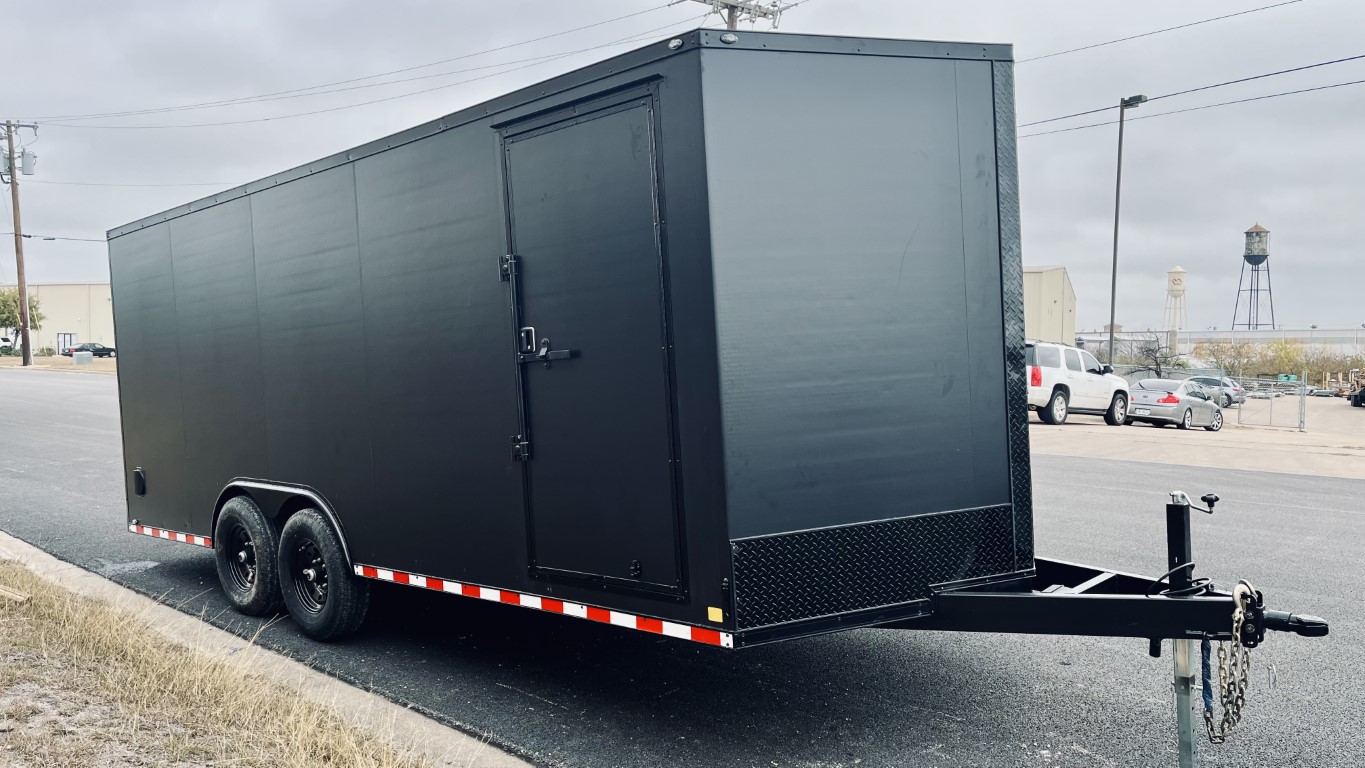

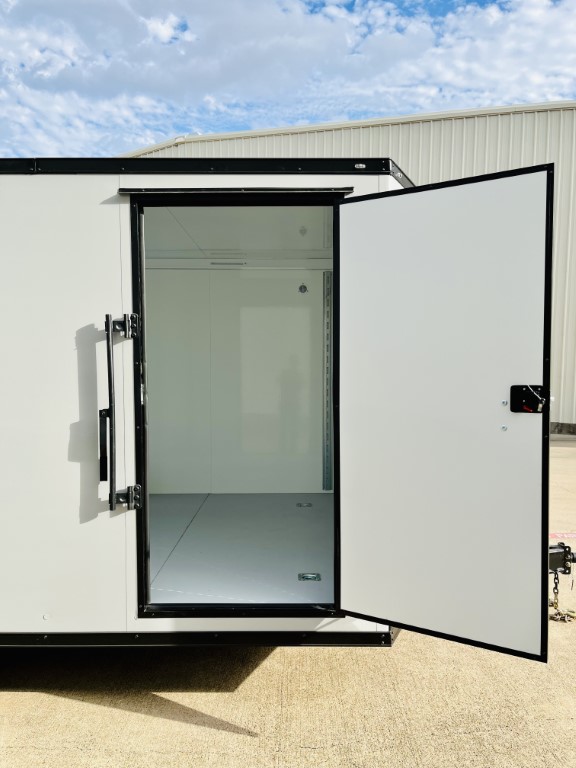

- 36″ Side Door with Flush Lock & Bar Lock
OPTIONS

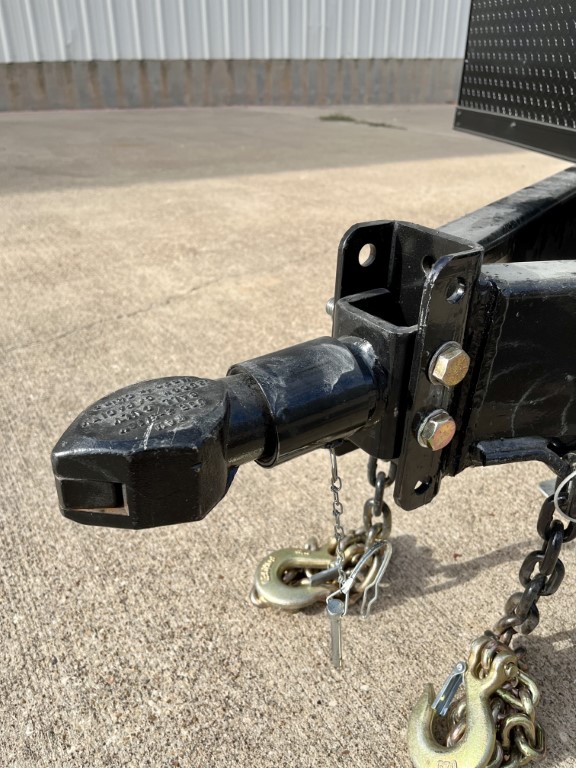

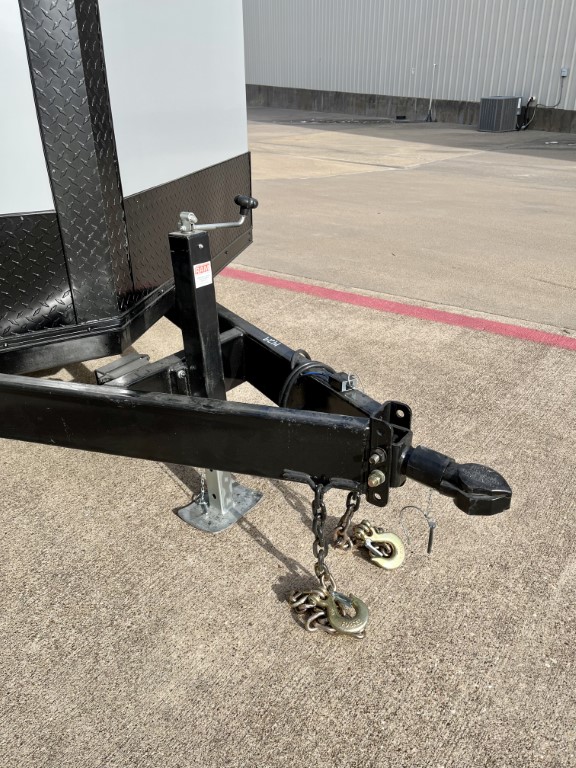

- 2 5/16″ Adjustable Coupler
- D-Rings

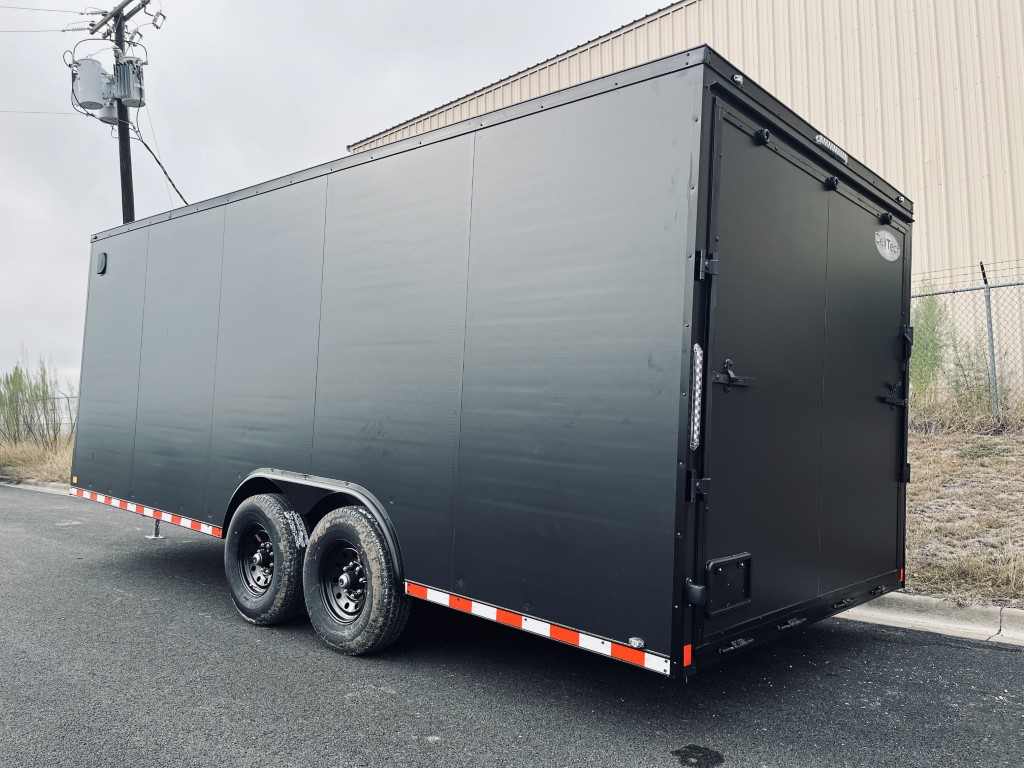

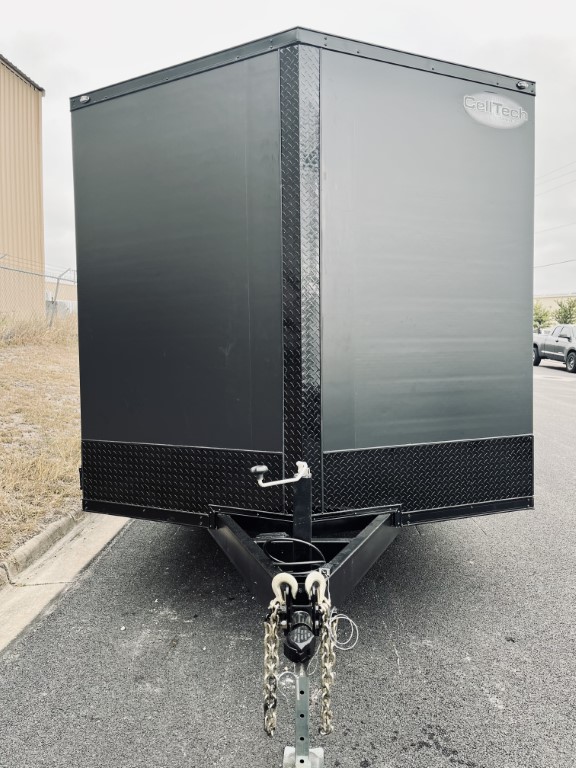

- Black Out
- Additional Wall Mounted Vertical E Tracks
- Ladder
- Ladder Rack
WARRANTY
- 10-year warranty on the structural frame
- 5-year warranty on Dexter axles

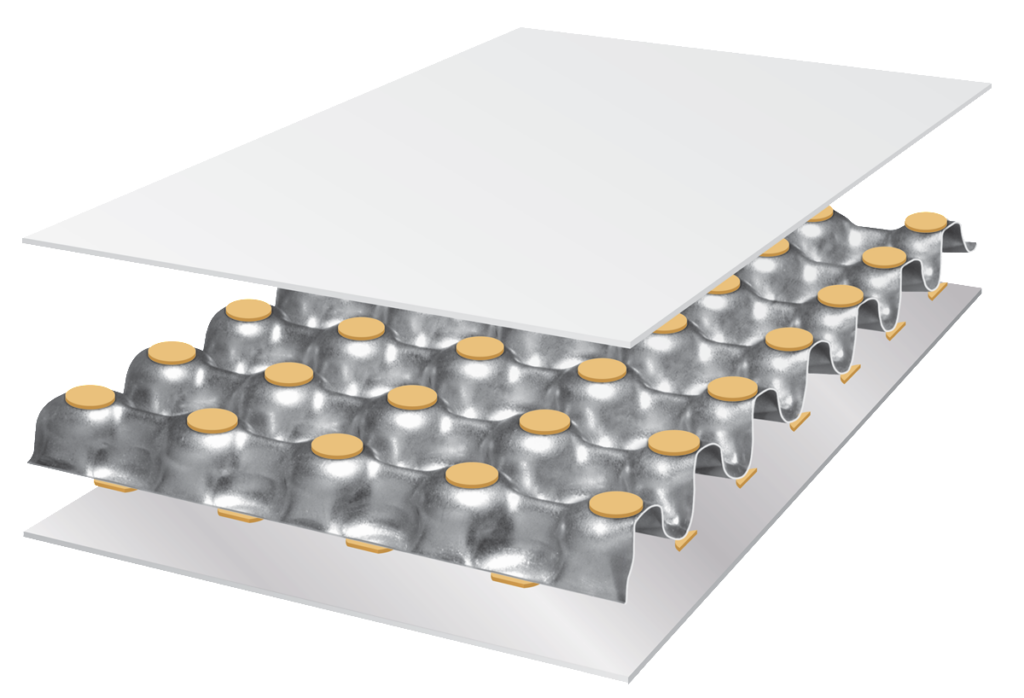

- 10-year panel delamination warranty from CellTech Metals
PRICE
AXLE
Choice of:
- 5,200lbs Dexter E-Z Lube Axles with 4″ Drop Leaf Spring *
- ST 225/75 R15 8 ply Tires
- 7,000lbs Dexter Torsion Axles (drop spring available on request) *
- ST 235/80 R16 10ply Tires
*rolling inventory change
FRAME
- 4″ Steel Tube Main Frame (Double Tube) & 16″ on center cross-members
- HD Drop Leg Jack
- 2 5/16″ Coupler
DIMENSIONS
- Interior Box Length 16’
- Interior Overall Length 17’ 6”
- Interior Width 6‘ 9“
- Interior Height 7‘ 2“
- Ramp Width 6‘ 1“
- Ramp Height 6‘ 10“
- Overall Length 21‘
- Overall Height (leveled) 8‘ 10“
- Weight 2,470lbs
ACCESSORIES
- Electric Brakes (Both Axles)
- Flow Through Vent System
- Wall Mounted Vertical E Tracks (8pcs)
- Roof Mounted Vertical E tracks (2pcs)
- All LED Lights (Interior & Exterior)
- 7 Way Bergman Plug
- LED Brake Away Kit
- Heavy Duty Ramp Door with Ramp Door Handle & Bar Locks
- 36″ Side Door with Flush Lock & Bar Lock
OPTIONS
- 2 5/16″ Adjustable Coupler
- D-Rings
- Black Out
- Additional Wall Mounted Vertical E Tracks
- Ladder
- Ladder Rack
WARRANTY
- 10-year warranty on the structural frame
- 5-year warranty on Dexter axles
- 10-year panel delamination warranty from CellTech Metals
PRICE
AXLE
Choice of:
- 5,200lbs Dexter E-Z Lube Axles with 4″ Drop Leaf Spring *
- ST 225/75 R15 8 ply Tires
- 7,000lbs Dexter Torsion Axles (drop spring available on request) *
- ST 235/80 R16 10ply Tires
*rolling inventory change
FRAME
- 6″ Steel Tube Main Frame (Double Tube) & 16″ on center cross-members
- HD Drop Leg Jack
- 2 5/16“ Coupler
DIMENSIONS

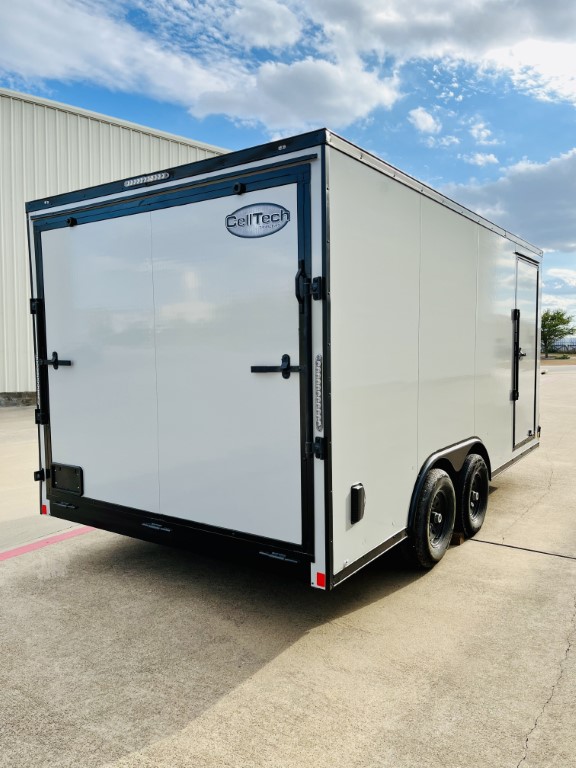

- Interior Box Length 16’
- Interior Overall Length 17’ 8”
- Interior Width 8‘ 3“
- Interior Height 7‘
- Ramp Width 7‘ 7“
- Ramp Height 6‘ 7“
- Overall Length 21‘6“
- Overall Height (leveled) 8‘ 10“
- Weight 3,260lbs
ACCESSORIES
- Electric Brakes (Both Axles)
- Flow Through Vent System
- Wall Mounted Vertical E Tracks (8pcs)
- Roof Mounted Vertical E tracks (2pcs)
- All LED Lights (Interior & Exterior)
- 7 Way Bergman Plug
- LED Brake Away Kit
- Heavy Duty Ramp Door with Ramp Door Handle & Bar Locks
- 36″ Side Door with Flush Lock & Bar Lock
OPTIONS
- 2 5/16″ Adjustable Coupler
- D-Rings
- Black Out
- Additional Wall Mounted Vertical E Tracks
- Ladder
- Ladder Rack
WARRANTY
- 10-year warranty on the structural frame
- 5-year warranty on Dexter axles
- 10-year panel delamination warranty from CellTech Metals
PRICE
AXLE
Choice of:
- 5,200lbs Dexter E-Z Lube Axles with 4″ Drop Leaf Spring *
- ST 225/75R15 8 ply Tires
- 7,000lbs Dexter Torsion Axles (drop spring available on request) *
- ST 235/80 R16 10ply Tires
*rolling inventory change
FRAME
- 6″ Steel Tube Main Frame (Double Tube) & 16″ on center cross-members
- HD Drop Leg Jack
- 2 5/16″ Coupler
DIMENSIONS

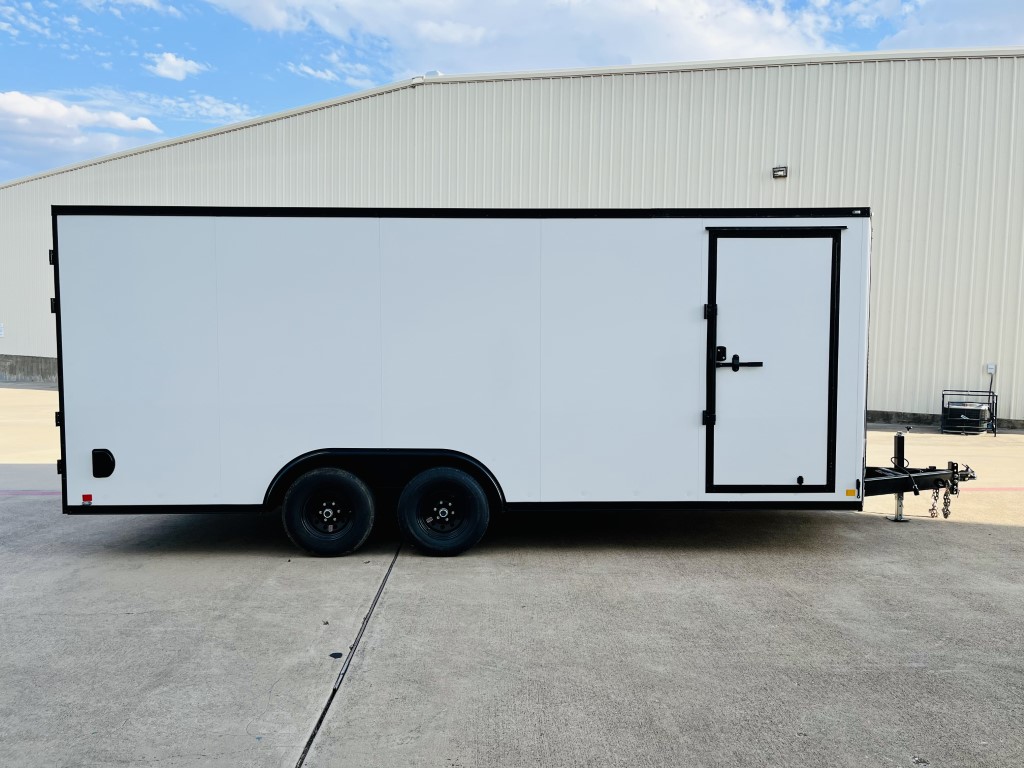

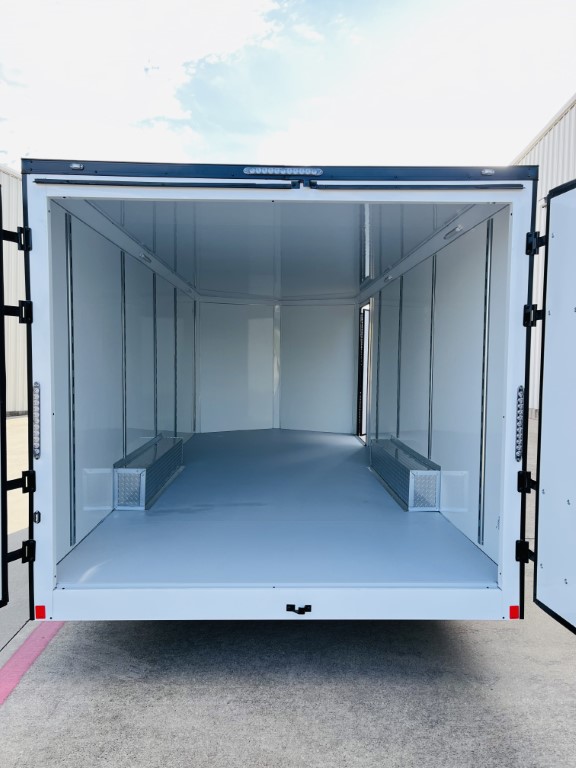

- Interior Box Length 20’
- Interior Overall Length 21’ 8”
- Interior Width 8‘ 3“
- Interior Height 7‘
- Ramp Width 7‘ 7“
- Ramp Height 6‘ 10“
- Overall Length 25‘6“
- Overall Height (leveled) 8‘ 10“
- Weight 3,360lbs
ACCESSORIES
- Electric Brakes (Both Axles)
- Flow Through Vent System
- Wall Mounted Vertical E Tracks (8pcs)
- Roof Mounted Vertical E tracks (2pcs)
- All LED Lights (Interior & Exterior)
- 7 Way Bergman Plug
- LED Brake Away Kit
- Heavy Duty Ramp Door with Ramp Door Handle & Bar Locks
- 36″ Side Door with Flush Lock & Bar Lock
OPTIONS
- 2 5/16″ Adjustable Coupler
- D-Rings
- Black Out
- Additional Wall Mounted Vertical E Tracks
- Ladder
- Ladder Rack
WARRANTY
- 10-year warranty on the structural frame
- 5-year warranty on Dexter axles
- 10-year panel delamination warranty from CellTech Metals
PRICE
AXLE
Choice of:
- 5,200lbs Dexter E-Z Lube Axles with 4″ Drop Leaf Spring *
- ST 225/75R15 8 ply Tires
- 7,000lbs Dexter Torsion Axles (drop spring available on request) *
- ST 235/80 R16 10ply Tires
*rolling inventory change
FRAME
- 6″ Steel Tube Main Frame (Double Tube) & 16″ on center cross-members
- HD Drop Leg Jack
- 2 5/16″ Coupler
DIMENSIONS
- Interior Box Length 24’
- Interior Overall Length 25’ 8”
- Interior Width 8‘ 3“
- Interior Height 7‘
- Ramp Width 7‘ 7“
- Ramp Height 6‘ 10“
- Overall Length 29‘6“
- Overall Height (leveled) 8‘ 10“
- Weight TBD
ACCESSORIES
- Electric Brakes (Both Axles)
- Flow Through Vent System
- Wall Mounted Vertical E Tracks (8pcs)
- Roof Mounted Vertical E tracks (2pcs)
- All LED Lights (Interior & Exterior)
- 7 Way Bergman Plug
- LED Brake Away Kit
- Heavy Duty Ramp Door with Ramp Door Handle & Bar Locks
- 36″ Side Door with Flush Lock & Bar Lock
OPTIONS
- 2 5/16″ Adjustable Coupler
- D-Rings
- Black Out
- Additional Wall Mounted Vertical E Tracks
- Ladder
- Ladder Rack
WARRANTY
- 10-year warranty on the structural frame
- 5-year warranty on Dexter axles
- 10-year panel delamination warranty from CellTech Metals
